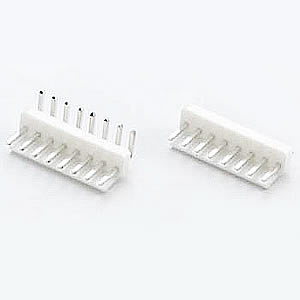

    50802X1TXXXA1XX Straight and Right Angle Typ

    SPECIFICATIONS:

    • INSULATOR: Nylon-66, UL94V-0
    • CONTACT: Brass.
    • PLATING: Full Tin.
    • CURRENT RATING: 5A.
    • WITHSTANDING VOLTAGE: 500V AC.
    • INSULATION RESISTANCE (MIN.): 1000MΩ.
    • CONTACT RESISTANCE (MAX.): 20mΩ.
    • OPERATING TEMPERATURE: -25℃ ~ +85℃

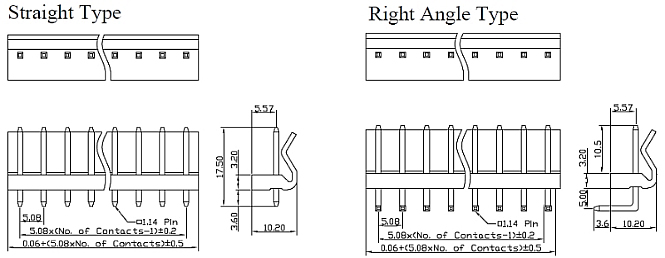

    DRAWING

50802X1TXXXA1XX Straight and Right Angle Typ
50802X1TXXXA1XX Straight and Right Angle Typ

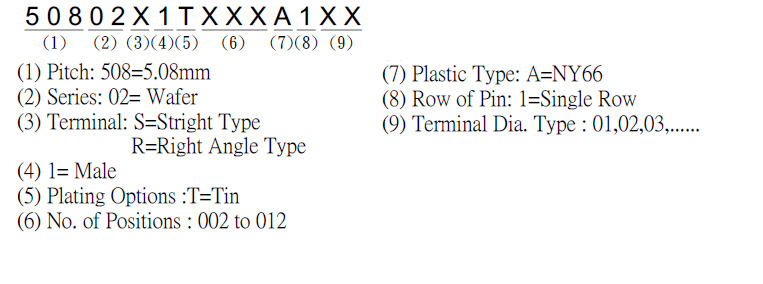

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 508=5.08mm
Series 02=Wafer
Terminal
Male 1=Male
Plating Options T=Tin
No. Of Positions
Plastic Type A=NY66
Row of Pin 1=Single Row
Terminal Dia. Type
