Bandolier Pin
-

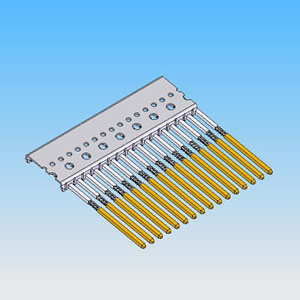

0.4,0.46 Bandolier Pin
SPECIFICATIONS:
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
(According to customers requirement). - Carrier: Brass
- Carrier Width (I): 1.5、2.54、6.0mm
- Plating: Gold、Tin、Lead Tin ...
(The plating model and plating thickness are adjustable as the customer' request). - Series: Square Pin、Round Pin
- Type: Straight、Alveolus、Concave、Hangnail、Square above round below Type
- Pitch (H): 1.27、2.54 mm
- Length (C): 6.0mm~50.0mm
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
-
0.5 Bandolier Pin
SPECIFICATIONS:
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
(According to customers requirement). - Carrier: Brass
- Carrier Width (I): 1.5、2.0mm
- Plating: Gold、Tin、Lead Tin ...
(The plating model and plating thickness are adjustable as the customer' request). - Series: Square Pin、Round Pin
- Type: Straight、Alveolus、Concave、Hangnail、Square Type
- Pitch (H): 1.27、2.0 mm
- Length (C): 6.0mm~50.0mm
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
-

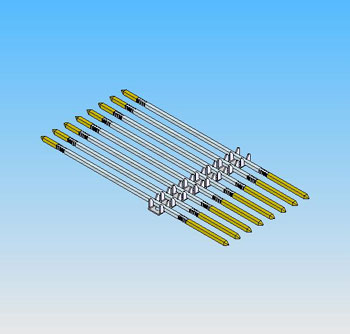

0.64 Bandolier Pin
SPECIFICATIONS:
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
(According to customers requirement). - Carrier: Brass、Steel
- Carrier Width (I): 2.54、4.1、6.1mm
- Plating: Gold、Tin、Lead Tin ...
(The plating model and plating thickness are adjustable as the customer' request). - Series: Square Pin
- Type: Straight、Alveolus、Concave、Hangnail、Square Type
- Pitch (H): 2.54、2.5、2.2mm
- Length (C): 6.0mm~70.0mm
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
-
1.0 Bandolier Pin
SPECIFICATIONS:
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
(According to customers requirement). - Carrier: Steel
- Carrier Width: 2.5、2.54mm
- Plating: Gold、Tin、Lead Tin ...
(The plating model and plating thickness are adjustable as the customer' request). - Series: Square Pin、Round Pin
- Type: Straight、Alveolus、Concave、Hangnail、Square Type
- Pitch: 5.08、2.54mm
- Length: 8.0mm~40.0mm
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
-
1.14 Bandolier Pin
SPECIFICATIONS:
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
(According to customers requirement). - Carrier: Steel
- Carrier Width: 3.95mm
- Plating: Gold、Tin、Lead Tin ...
(The plating model and plating thickness are adjustable as the customer' request). - Series: Square Pin
- Type: Straight、Alveolus、Swage Type
- Pitch: 3.96、4.2mm
- Length: 8.0mm~40.0mm
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
-
Terminal For Automaotive A Parts
SPECIFICATIONS:
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
(According to customers requirement). - Carrier: Brass C-2600
- Carrier Width: 4.1、6.0mm
- Plating: Gold、Tin、Lead Tin ...
(The plating model and plating thickness are adjustable as the customer' request). - Series: Square Pin
- Type: Swage Type
- Pitch: 2.54mm
- Diameter: 0.64mm
- Length: 8.0mm~80.0mm
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
-
Terminal For Automaotive B Parts
SPECIFICATIONS:
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
(According to customers requirement). - Carrier: Steel
- Carrier Width: 2.54mm
- Plating: Gold、Tin、Lead Tin ...
(The plating model and plating thickness are adjustable as the customer' request). - Series: Round Pin
- Type: Straight、Alveolus、Swage Type
- Pitch: 2.54mm
- Diameter: 0.8mm
- Length: 8.0mm~80.0mm
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
-
Terminal For Automaotive C Parts
SPECIFICATIONS:
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
(According to customers requirement). - Carrier: Steel
- Carrier Width: 2.5mm
- Plating: Gold、Tin、Lead Tin ...
(The plating model and plating thickness are adjustable as the customer' request). - Series: Round Pin
- Type: Straight、Alveolus、Swage Type
- Pitch: 2.54mm
- Diameter: 0.8mm
- Length: 8.0mm~80.0mm
- Material: Brass、Phosphor Bronze、Tinned Copper、Copper
-
魚眼型端子
25418TB150001 Press-Fit Terminal
SPECIFICATIONS:
- Material: Brass C-2680 (Or customer's requirement)...
- Plating: Tin 2.5 micro-meter over Ni 1.27micro-meter.
(Or, tin/lead, gold & palladium nickel are available.) - Suggested PCB finished hole size: 0.94 ~ 1.09 mm.
FEATURES:
- Press-fit technology provides a perfect gas-tight contact to work with large diameter tolerances on plated-through-hole. It's economical in comparison to solder technique.
- Compliant pin offers low contact resistance and high retention force, it eliminates thermal stress, preventing solder defects & PCB warpage caused by other design.
-

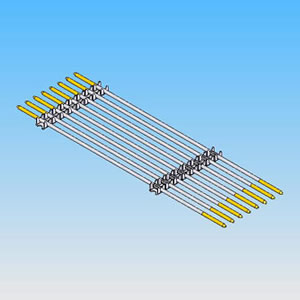

Round Pin
Total of 11 results
