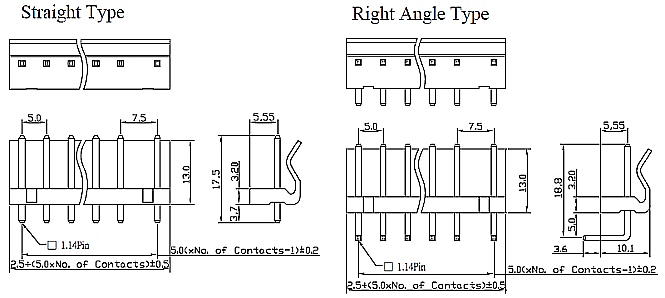

• 75001X1TXXXA1XX Straight and Right Angle Type

    SPECIFICATIONS:

    • Terminal: Straight, Right Angle Type
    • Pin Material: Brass
    • Row of pin: Single row
    • Positions: 1x2~1x7Pin
    • Plastic Material: NY66(UL94-V2)
    • Plating: Tin
    • Plastic height: 13.0mm

75001X1TXXXA1XX Straight and Right Angle Type
75001X1TXXXA1XX Straight and Right Angle Type

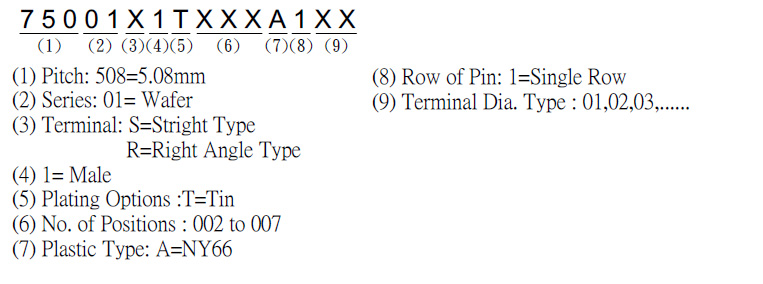

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 750=7.50mm
Series 01=Wafer
Terminal
Male 1=Male
Plating Options T=Tin
No. Of Positions
Plastic Type A=NY66
Row of Pin 1=Single Row
Terminal Dia. Type
See Catalog
