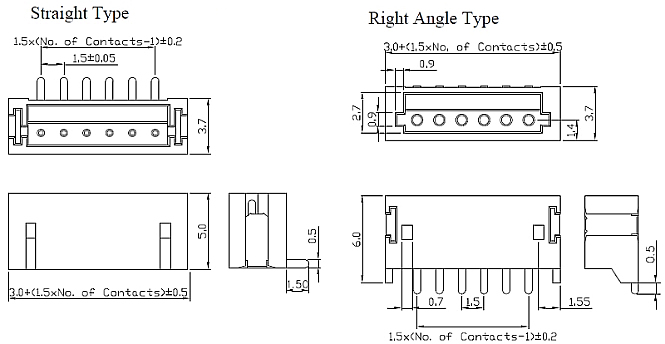

• 15002X1TXXXA1XX Straight and Right Angle Type

    SPECIFICATIONS:

    • Terminal: Straight, Right Angle Type
    • Pin Material: Brass
    • Row of pin: Single row
    • Positions: 1x2~1x13Pin
    • Plastic Material: NY6T(UL94-V0)
    • Plating: Tin
    • Plastic height: 5.0mm, 6.0mm

15002X1TXXXA1XX Straight and Right Angle Type
15002X1TXXXA1XX Straight and Right Angle Type

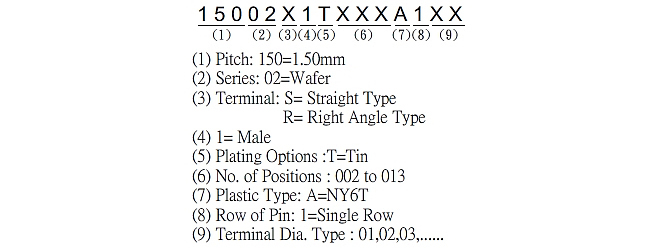

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 150=1.50mm
Series 02=Wafer
Terminal
Male 1=Male
Plating Options T=Tin
No. Of Positions
Plastic Type A=NY6T
Row of Pin 1=Single Row
Terminal Dia. Type
