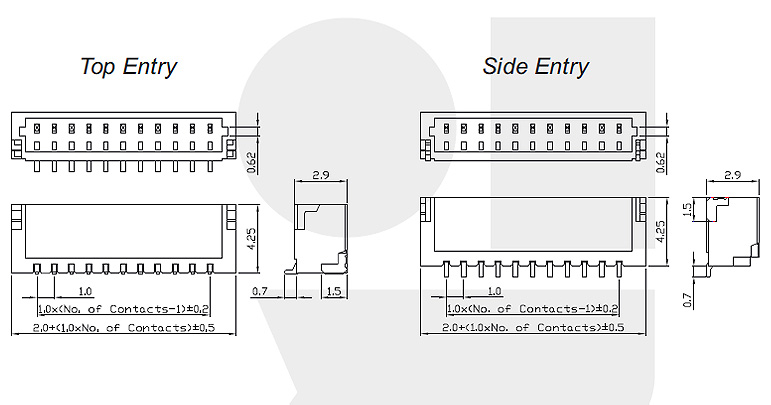

• 10005M1TXXXA1XX Straight, Right Angle and SMT Type

    SPECIFICATIONS:

    • Terminal: SMT Type
    • Pin Material: Phosphor Bronze
    • Row of pin: Single row
    • Positions: 1x2~1x20Pin
    • Plastic Material: NY6T(UL94-V0)
    • Plating: Tin
    • Plastic height: 4.25mm

    PDF

10005M1TXXXA1XX Straight, Right Angle and SMT Type
10005M1TXXXA1XX Straight, Right Angle and SMT Type

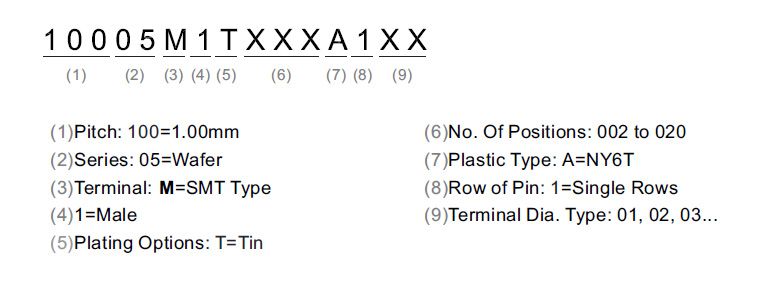

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 100=1.00mm
Series 05=Wafer
Terminal M=SMT Type
Male 1=Male
Plating Options T=Tin
No. Of Positions
Plastic Type A=NY6T
Row of Pin 1=Single Row
Terminal Dia. Type
