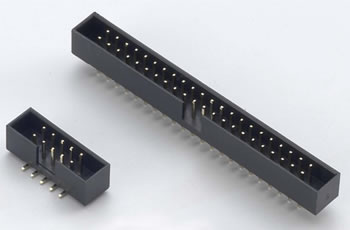

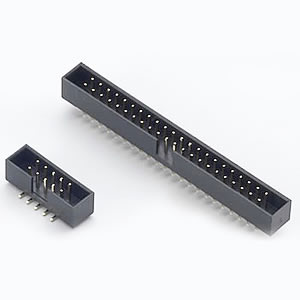

• 20004X1XXXXX2XX Straight, Right Angle<br> and SMT Type

    20004X1XXXXX2XX Straight, Right Angle<br> and SMT Type

    SPECIFICATIONS:

    • INSULATOR: Polyester, UL94V-0
      Standard: Nylon-6T
    • CONTACT: Brass.
    • PLATING: Full Gold, Full Tin, Selective Plated.
    • CURRENT RATING: 1A.
    • WITHSTANDING VOLTAGE: 500V AC.
    • INSULATION RESISTANCE (MIN.): 5000MΩ.
    • CONTACT RESISTANCE (MAX.): 20mΩ.
    • OPERATING TEMPERATURE: -40℃ ~ +105℃.

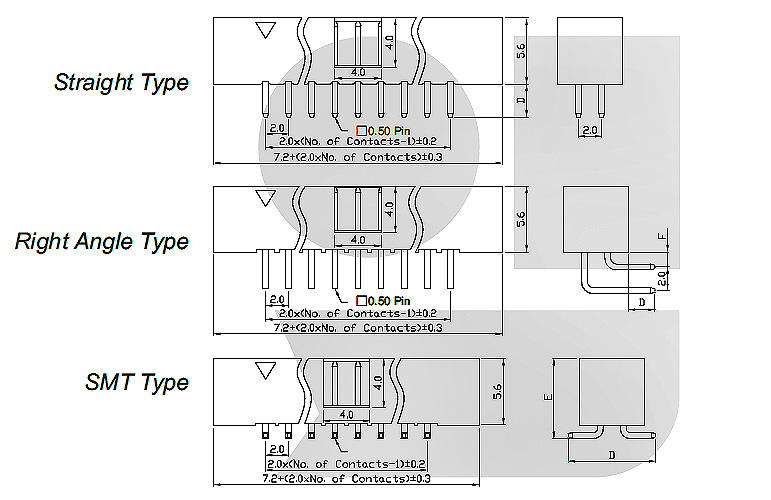

    DRAWING

20004X1XXXXX2XX Straight, Right Angle<br> and SMT Type
20004X1XXXXX2XX Straight, Right Angle<br> and SMT Type

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 200=2.00mm
Series 04=Box Header
Terminal
Male 1=Male
Plating Options
No. Of Positions
Plastic Type
Row of Pin 2=Dual Rows
Terminal Dia. Type
