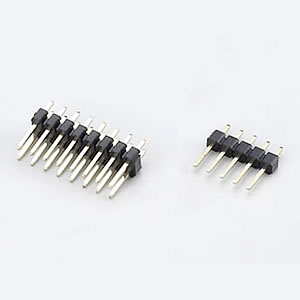

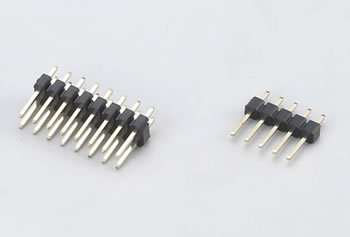

• 20001X1XXXXX1XX Straight, Right Angle and SMT Type

    20001X1XXXXX1XX Straight, Right Angle and SMT Type

    SPECIFICATIONS:

    • INSULATOR: Polyester, UL94V-0
      Standard: PBT
    • CONTACT: Brass.
    • PLATING: Full Gold, Full Tin, Selective Plated.
    • CURRENT RATING: 1A.
    • WITHSTANDING VOLTAGE: 500V AC.
    • INSULATION RESISTANCE (MIN.): 5000MΩ.
    • CONTACT RESISTANCE (MAX.): 20mΩ.
    • OPERATING TEMPERATURE: -40℃ ~ +105℃.

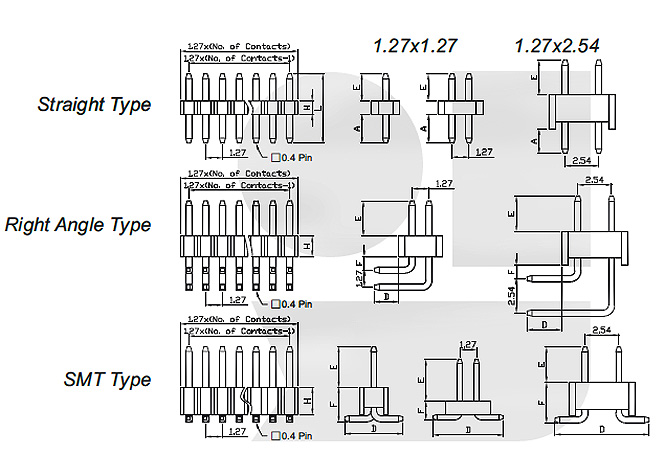

    DRAWING

20001X1XXXXX1XX Straight, Right Angle and SMT Type
20001X1XXXXX1XX Straight, Right Angle and SMT Type

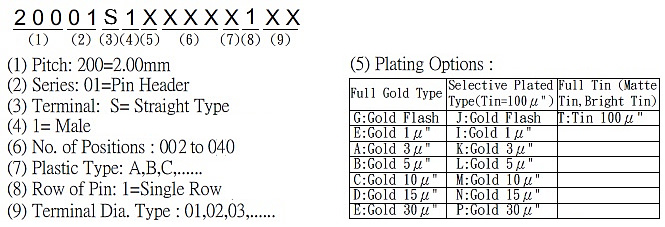

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 200=2.00mm
Series 01=Pin Header
Terminal
Male 1=Male
Plating Options
No. Of Positions
Plastic Type
Row of Pin
Terminal Dia. Type
