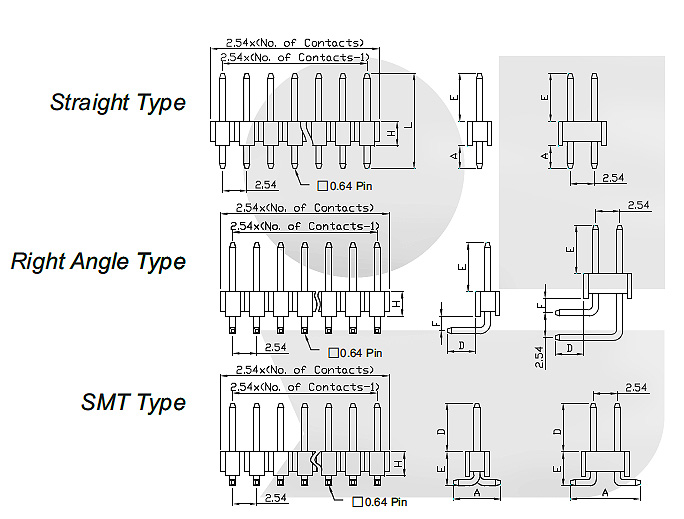

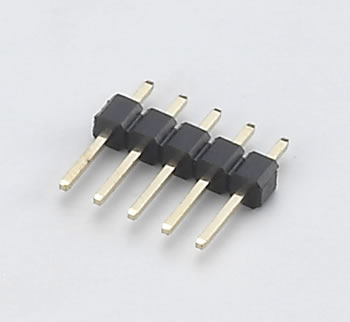

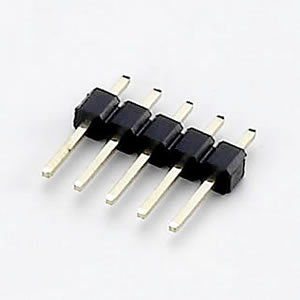

25401X1XXXXXXXX Straight, Right Angle and SMT Type
SPECIFICATIONS:
MATERIAL & FINISH
- INSULATOR MATERIAL:PBT, Nylon 6T or Nylon 9T UL, 94V-0
- CONTACY MATERIAL:Brass.
- FINISH:Gold Flash or Contact Selective Gold
ELECTRICAL
- CURRENT RATING:3A
- WITHSTANDING VOLTAGE:500V AC.
- INSULATION RESISTANCE(MIN.):5000MΩ.
- CONTACT RESISTANCE(MAX.):20mΩ.
- OPERATING TEMPERATURE:-40°C
