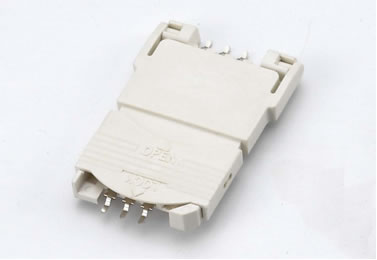

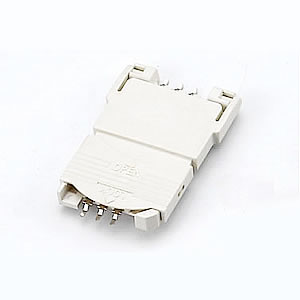

• 25404M1T006A2XX SMT Type

    25404M1T006A2XX SMT Type

    SPECIFICATIONS:

    • INSULATOR: LCP, UL94V-0
    • CONTACT: Be-Cu Alloy
    • PLATING: Selective Plated
    • CURRENT RATING: 1A.
    • WITHSTANDING VOLTAGE: 500V AC.
    • INSULATION RESISTANCE (MIN.): 1000MΩ.
    • CONTACT RESISTANCE (MAX.):30mΩ.
    • OPERATING TEMPERATURE: -40℃ ~ +85℃.

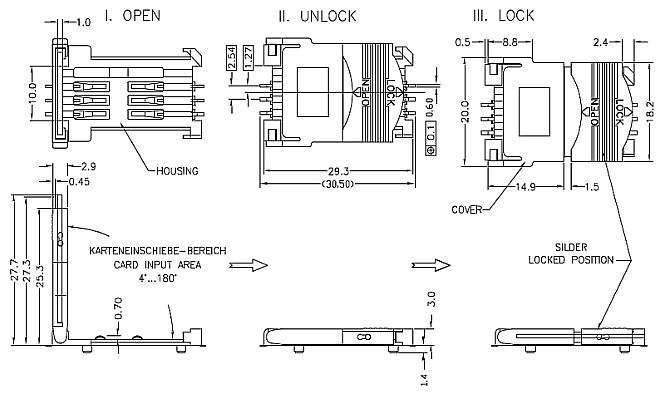

    DRAWING

25404M1T006A2XX SMT Type
25404M1T006A2XX SMT Type

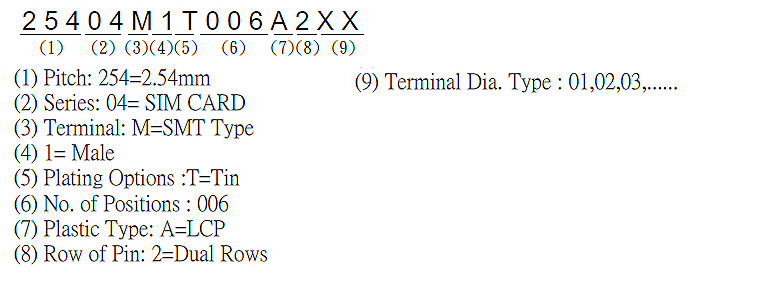

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 254=2.54mm
Series 04=Sim Card Socket
Series M=SMT Type
Male 1=Male
Plating Options T=Tin
No. Of Positions 006
Plastic Type A=LCP
Row of Pin 2=Dual Rows
Terminal Dia. Type
