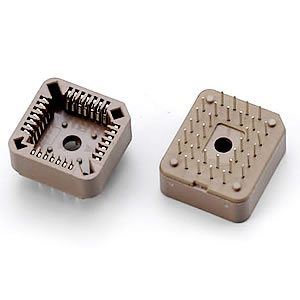

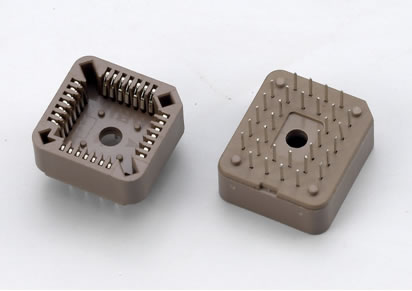

• 12703S1TXXXX4XX Straight Type

    12703S1TXXXX4XX Straight Type

    SPECIFICATIONS:

    • INSULATOR: Polyester, UL94V-0
      Standard: PPS
    • CONTACT: Phosphor Bronze.
    • PLATING: Full Tin / 120μ”
    • CURRENT RATING: 1A.
    • WITHSTANDING VOLTAGE: 500V AC.
    • INSULATION RESISTANCE (MIN.): 1000MΩ.
    • CONTACT RESISTANCE (MAX.): 30mΩ.
    • OPERATING TEMPERATURE: -40℃ ~ +105℃.

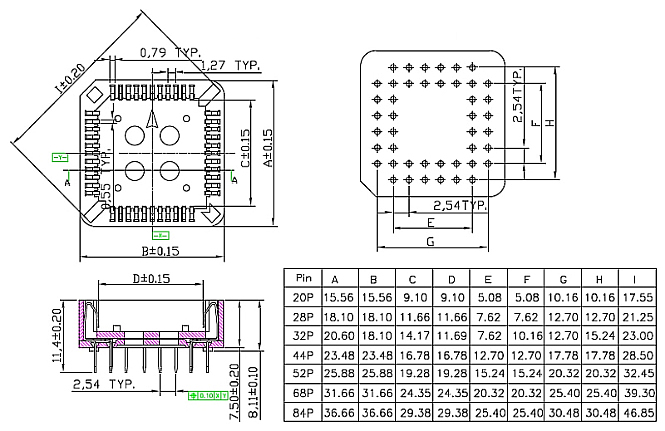

    DRAWING

12703S1TXXXX4XX Straight Type
12703S1TXXXX4XX Straight Type

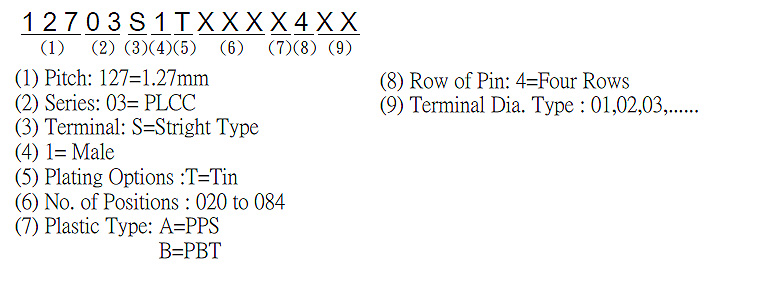

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 127=1.27mm
Series 03=PLCC Socket
Terminal S=Straight Type
Female 1=Male
Plating Options T=Tin
No. Of Positions
Plastic Type
Row of Pin 4=Foal Rows
Terminal Dia. Type
