Alveolus

SPECIFICATIONS:

• Material: Brass、Phosphor Bronze、Tinned Copper、Copper
  (According to customers requirement).
• Plating: Gold、Tin、Lead Tin ...
  (The plating model and plating thickness are adjustable as the customer' request).
• Series: Square Pin、Round Pin
• Type: Alveolus Type
• Diameter: 0.4mm ~ 1.5mm
• Length: 4.0mm~20.0mm

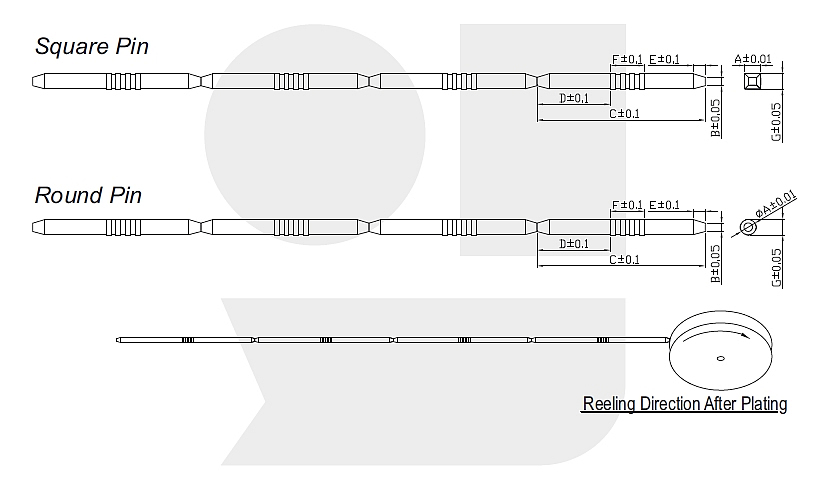

• Sizes in the diagram may be modified according to customers requirement,
  Chamfer angle can be sheared without any processing or to R angle.
• The sides or four sides can be dotted.
