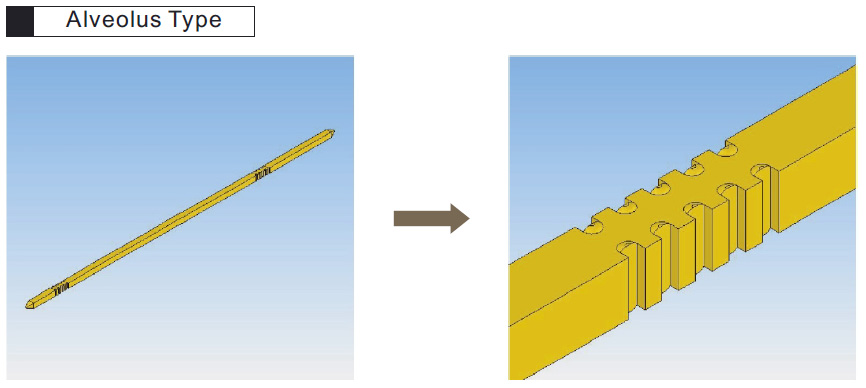

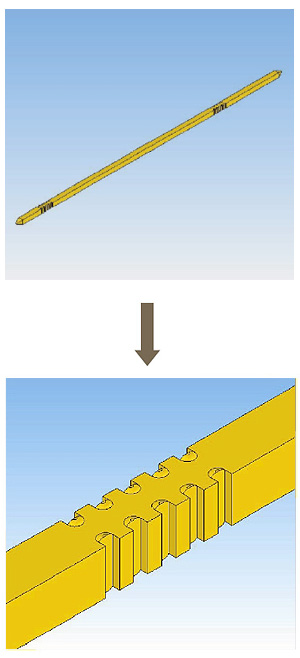

Alveolus Type

• Material:Brass、Phosphor Bronze、Tinned Copper、Copper
  (According to customers requirement)
• Plating: Gold、Tin、Lead Tin...
  (The plating model and plating thickness are adjustable as the customer' request)
• Series: Square Pin、Round Pin
• Type: Alveolus Type
• Diameter: 0.5mm ~ 1.45mm
• Length: 5.0mm ~ 40.0mm

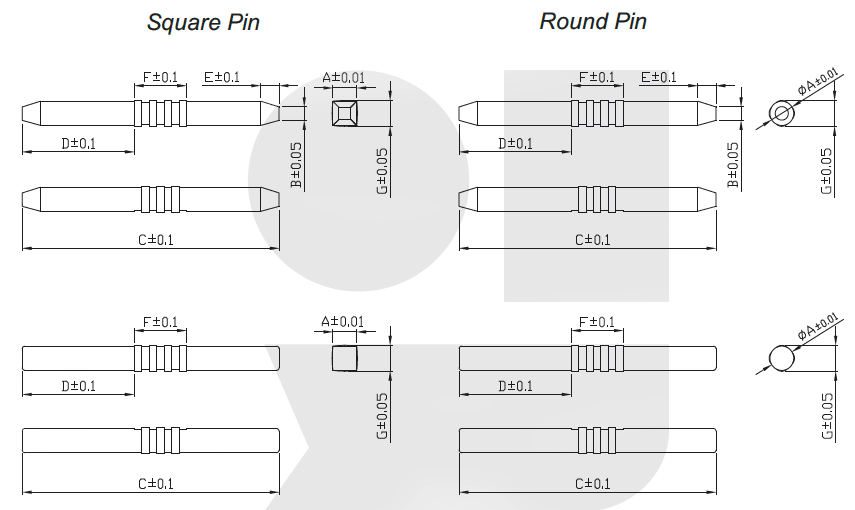

• Sizes in the diagram may be modified according to customers requirement,Chamfer angle can be sherred without any processing or to R angle.
• The sides or four sides can be dotted.

SPECIFICATIONS:

• 0.30 Length: 4~20mm
• 0.35 Length: 4~20mm
• 0.40 Length: 4~30mm
• 0.46 Length: 4~30mm
• 0.50 Length: 4.5~35mm
• 0.64 Length: 5~70mm
• 1.14 Length: 8~70mm
