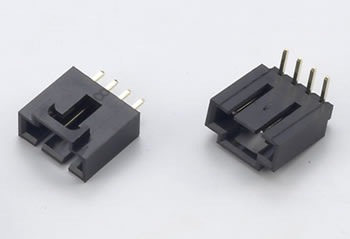

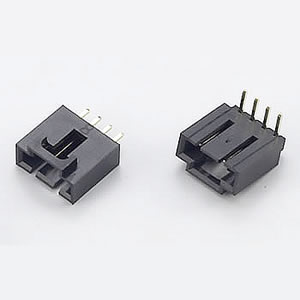

• 25408X1XXXXXXXX Straight and Right Angle Typ

    25408X1XXXXXXXX Straight and Right Angle Typ

    SPECIFICATIONS:

    • INSULATOR: Polyester, UL94V-0
      Standard: PBT
    • CONTACT: Brass.
    • PLATING: Full Gold, Full Tin, Selective Plated.
    • CURRENT RATING: 3A.
    • WITHSTANDING VOLTAGE: 500V AC.
    • INSULATION RESISTANCE (MIN.): 5000MΩ.
    • CONTACT RESISTANCE (MAX.): 20mΩ.
    • OPERATING TEMPERATURE: -40℃ ~ +105℃.

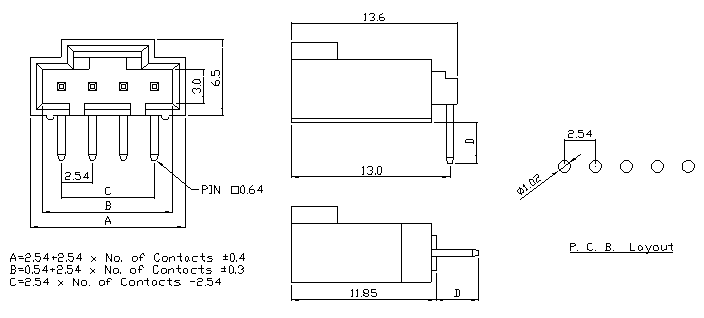

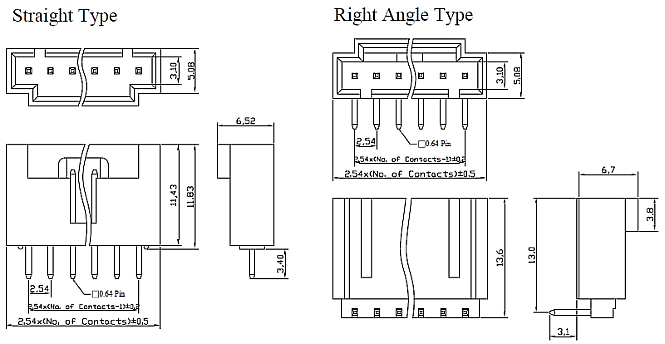

    DRAWING

25408X1XXXXXXXX Straight and Right Angle Typ
25408X1XXXXXXXX Straight and Right Angle Typ

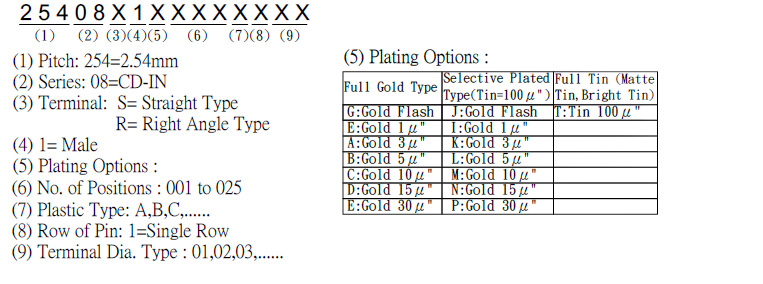

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 254=2.54mm
Series 08=CD-IN
Terminal
Male 1=Male
Plating Options
No. Of Positions
Plastic Type
Row of Pin 1=Single Row
Terminal Dia. Type
