• 12510X1TXXXA1XX Straight, Right Angle and SMT Type

    SPECIFICATIONS:

    • Terminal: Straight, Right Angle, SMT Type
    • Pin Material: Brass
    • Row of pin: Single row
    • Positions: 1x2~1x15Pin
    • Plastic Material: NY46(UL94-V0)
    • Plating: Tin
    • Plastic height: 4.6mm

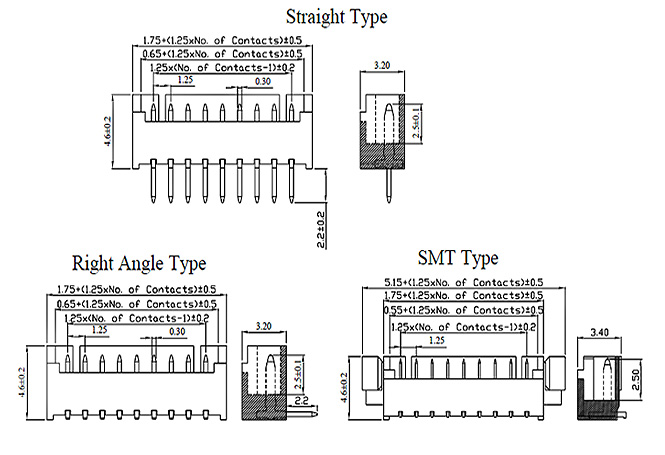

12510X1TXXXA1XX Straight, Right Angle and SMT Type
12510X1TXXXA1XX Straight, Right Angle and SMT Type

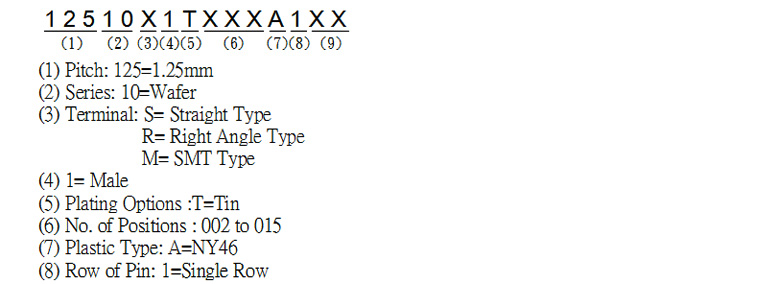

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 125=1.25mm
Series 10=Wafer
Terminal
Male 1=Male
Plating Options T=Tin
No. Of Positions
Plastic Type A=NY46
Row of Pin 1=Single Row
Terminal Dia. Type
