• SPECIFICATIONS:

    • INSULATOR: Nylon-66, UL94V-0
    • CONTACT: Brass.
    • PLATING: Full Tin.
    • CURRENT RATING: 5A.
    • WITHSTANDING VOLTAGE: 1500V AC.
    • INSULATION RESISTANCE (MIN.): 1000MΩ.
    • CONTACT RESISTANCE (MAX.): 20mΩ.
    • OPERATING TEMPERATURE: -25℃ ~ +85℃.

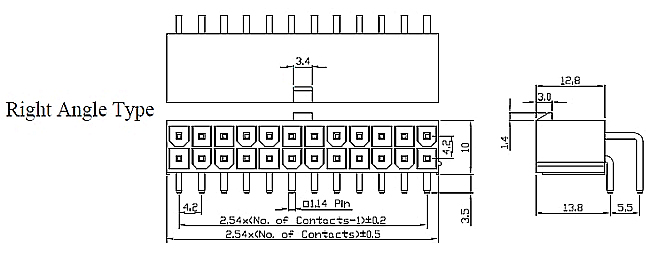

    DRAWING

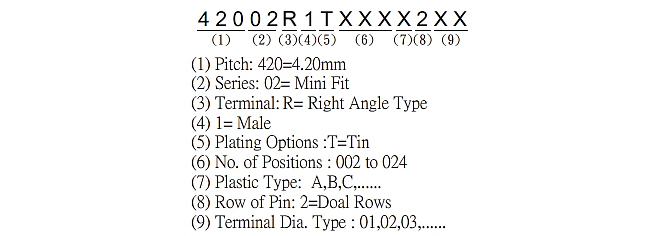

Order / Inquiry Information

Please select Items below and click See Catelog for Inquiry.
Pitch 420=4.20mm
Series 02=Mini Fit
Terminal R=Ringht Angle Type
Male 1=Male
Plating Options T=Tin
No. Of Positions
Plastic Type
Row of Pin 2=Dual Rows
Terminal Dia. Type
